خانه /محصولات/فیبر نوری سوئیچ POE/Gigabit 4 Port PoE Switch 65W fiber network switch for businesses

Gigabit 4 Port PoE Switch 65W fiber network switch for businesses

1 عدد
MOQ
قابل مذاکره
قیمت
Gigabit 4 Port PoE Switch 65W fiber network switch for businesses
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
نام محصول: سوئیچ PoE 4 پورت گیگابیتی
توان خروجی POE: 15.4W/30W
نرخ داده: 10/100/1000Mbps
حالت انتقال: ذخیره و رو به جلو
OEM: قبول کنید
منبع تغذیه: 52V1.25A
اطلاعات اولیه
محل منبع: گوانگدونگ، چین
نام تجاری: Olycom
گواهی: CE RoHS FCC ISO9001
شماره مدل: OM154-PSE-GE V1
پرداخت
جزئیات بسته بندی: بسته بندی خالص
زمان تحویل: 4 ~ 8 روز کاری
شرایط پرداخت: T/T، Paypal
قابلیت ارائه: 3000 عدد در ماه
توضیحات محصول

Gigabit 4 Port PoE Switch 65W fiber network switch for businesses




Features of gigabit 4 port PoE switch


  • 4*10/100/1000M POE Ports + 1*1000M RJ45 Port+1*1000M SFP Port
  • Comply with IEEE 802.3, IEEE 802.3u,IEEE802.3ab,IEEE802.3z standards
  • Ethernet port 10/100/1000M rate auto adaptive
  • Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
  • Support Port Auto-flip (Auto MDI/MDIX)
  • Panel indicators to monitor working status and help fault analysis
  • One-key smart switch, supports VLAN,Default,Extend

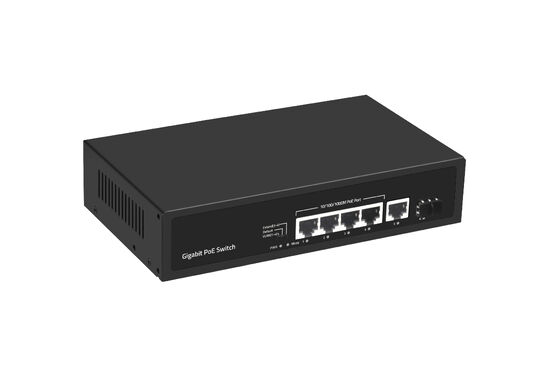

Gigabit 4 Port PoE Switch 65W fiber network switch for businesses 0

Specification of Fiber Network Switch


I/O Interface
Power Input: AC 100-240V, 50/60Hz
Ethernet

4*10/100/1000M PoE Port

1*1000M RJ45 Port

1* Gigabit SFP Uplink Port
Performance
Switching Capacity 12Gbps
Throughput 8.928Mpps
Packet Buffer 1Mbit
MAC Address 2K
Jumbo Frame 9216bytes
Transfer Mode Store and forward
MTBF 100000 hour
Standard
Network protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab(1000Base-TX)

IEEE802.3z(1000Base-FX)

IEEE802.3x (Flow control)

PoE Protocol

IEEE802.3af (15.4W)

IEEE802.3at (30W)

Network Medium

10Base-T : Cat3,4,5 or above UTP(≤100m)

100Base-TX : Cat5 or above UTP(≤100m)

1000Base-TX : Cat5 or above UTP(≤100m)
Optical Media

Multimode fiber : 50/125, 62.5/125, 100/140μm

Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm
Protection
Security Certificate CE,FCC,RoHS
Environment
Working Environment

Working Temperature:-10~50°C

Storage Temperature:-40~70°C

Working Humidity :10%~90%,non-condensing

Storage Temperature:5%~95%,non-condensing
Indication
PWR(power supply)

Lighting:Powered

Un-Light:No Power
Mode(DIP)

Lighting:VLAN

Un-Light:Default

Flashing:Extend
1-6 Gree(Link&Data)

Lighting:Connecting

Flashing:Data Transmit

Un-Light:Disconnect
DIP Switch

VLAN:Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port.

Default : Normal mode, all port can communicate with each other, the transmission distance is within 100 meters

Extend:Link extension mode, 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M
Mechanical
Structure Size

Product Dimension : 200*118*44.5mm

Package Dimension : 245*190*60mm

N.W:0.63kg

G.W:0.93kg
Packing Info

Carton MEAS:520*320*400mm

Packing Qty:20units

Packing Weight:19.6KG
Power Voltage

Input Voltage :AC 100-240 V

Power supply:52V1.25A
power

Product power: maximum 5W

POE power: maximum 60W
Package List Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc,


Application:


  • Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.
  • Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
  • Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
  • Real-time monitoring: Simultaneous transmission of real-time control signals, images and data

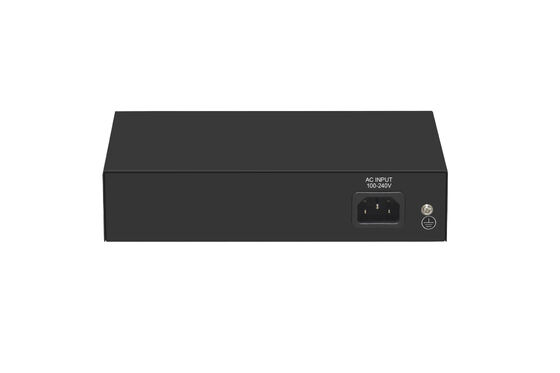

Gigabit 4 Port PoE Switch 65W fiber network switch for businesses 1

Production Steps:


  1. Welding: Weld the necessary components
  2. Cleaning: To avoid any possible dysfunction due to dust or scraps on the PCB boards.
  3. Assembling: Builds up components of a product, like panels, screws, PCB boards.
  4. Testing: To make sure the product is basically working fine after assembling
  5. Aging: To check if the product can work smoothly for long time without any minors such as LED indicators, voltage. This will usually last for 24 to 48 hours.
  6. Testing: To test if the product can process data or video signals correctly. Any data loss? Transmission rate correct? Any data packet failure? Such questions would be verified in this procedure.
  7. QC testing: This is the third and also last check of product quality. If it goes good, our packing staff will pack it up according to customer requirements and attach to the packing box a product label.

       When all above is done, the product will go to market.
