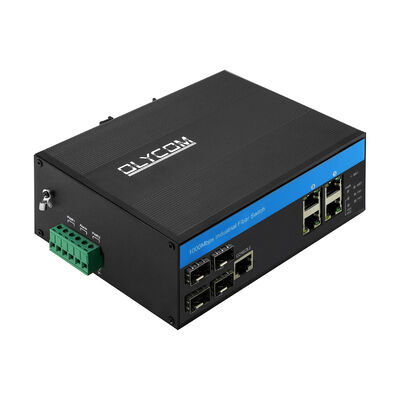

Olycom Managed Industrial PoE Fiber Switch
1. Product Overview
1.1 The IM-FP444GW is a managed industrial-grade PoE fiber switch designed for high-reliability Ethernet and fiber transmission in harsh environments. It integrates 4 × 100/1000/2500Mbps SFP fiber ports with 4 × 10/100/1000Mbps PoE-enabled RJ45 ports, providing a flexible access and aggregation solution for industrial networks, outdoor surveillance, and distributed fiber architectures.
1.2 Compliant with IEEE 802.3af/at, the switch delivers up to 30W per PoE port with a total power budget of 120W, ensuring stable power and data transmission to IP cameras, wireless APs, and edge devices. With its IP40-rated metal enclosure, DIN-rail or wall mounting, and wide operating temperature range of -40°C to +75°C, the IM-FP444GW is built for continuous operation in demanding industrial and outdoor deployments.
2. Key Features
The IM-FP444GW combines advanced Layer 2 management, industrial protection, and high-performance switching capabilities:
-
Hybrid Fiber & PoE Design – 4 × 2.5G SFP ports for long-distance fiber transmission and 4 × Gigabit RJ45 PoE ports.
-
Industrial PoE Power Delivery – IEEE 802.3af/at compliant, 30W per port, 120W total PoE budget, 48V output.
-
Advanced Layer 2 Management – Supports VLAN (802.1Q), QoS, IGMP/MLD snooping, LACP link aggregation, and bandwidth control.
-
Ring Protection & Redundancy – Supports STP, RSTP, MSTP, and ITU-T G.8032 Ethernet Protection Ring (EPR) for fast network recovery.
-
Industrial Reliability – 6KV Ethernet surge protection, ESD protection up to ±15KV air, EMC industrial-grade compliance.
-
High Switching Performance – 28Gbps switching capacity, 20.83Mpps forwarding rate, 8K MAC table, 9.6KB jumbo frames.
-
Flexible Management – Web GUI, Cisco®-like CLI, SNMP v1/v2c/v3, Telnet, SSH, HTTPS, and firmware redundancy.
-
Energy Efficient & Diagnostic Features – IEEE 802.3az EEE, cable diagnostics, port mirroring, RMON, and event logging.
3. Specification
|
Product Name
|
10/100/1000Mbps Managed Industrial PoE Fiber Switch(4F+4TP)
|
|
Model No.
|
IM-FP444GW
|
|
Port
|
4*100/1000/2500Mpbs SFP ports
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500-meter
8*10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
|
Protocol
|
IEEE 802.3
IEEE802.3U
IEEE802.3ab
IEEE802.3z
IEEE802.1d STP
IEEE802.1w RSTP
IEEE802.1s MSTP
ITU-T G.8023 EPR/Y.1344
IEEE802.1Q
IEEE802.1X
IEEE802.3ad
IEEE802.3x
IEEE802.1ad
IEEE802.1p
IEEE802.1ab
IEEE802.3az
IEEE802.3af
IEEE802.3at
|
|
Switching Features
|
Transmission mode: storage and forward
Forwarding delay: <10us
System bandwidth: 28Gbps(non-traffic jam)
Forwarding rate: 20.83Mpps
DRAM size: 128M
Flash size: 16M
Packet buffer size: 4Mb
VLAND ID: 4096
MAC Address Table Size: 8K
Jumbo Frame: 9.6KB
|
|
Network Media
|
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
|
LEDs
|
Power, network, fiber
PWR: Power
Orange: Link/ACT
Green: 1000M Network Speed(off when it is 100Mb/s)
Fiber: FX1/FX2/FX3/FX4
|
|

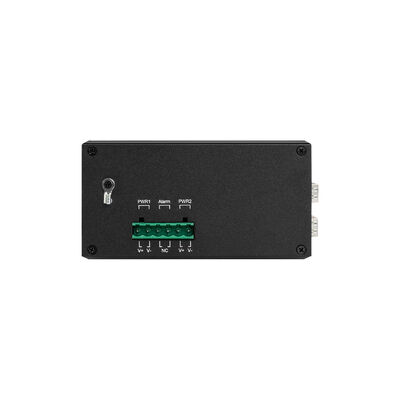

Power Supply
|
Input voltage: 48V(max 52V)
PoE output voltage: 48V
Single PoE output power: 30W(port 1~4)
Max budget: 120W
Reverse connection: support
|
|
PoE Wiring
|
PoE af/at: 1/2(V+), 3/6(V-)
|
|
Environment
|
Working temperature: -40°C～75°C
Storage temperature: -40°C～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
|
Industry Standards
|
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
|
Certification
|
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
|
|
Mechanical information
|
Shell: Corrugated metal shell, IP40 grade level
Dimension: 158*115*60mm
Mounting method: Din-rail/Wall mounting
Weight: 0.75Kg/0.9Kg(Net/Gross)
|
|
Warranty
|
3 years, lifetime technical support
|
4. Dimension
5. Web UI
6. Software Features
- Support cable diagnosis and can locate the fault point
- Support IEEE802.3az EEE(Energy Efficient Ethernet) Management, optimize power consumption
- Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
- Support QoS, transport classification QoS, CoS, bandwidth control(input/output direction), storm suppression, differentiated services
- Support IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR
- Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
- Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
- Support IGMP agent report, MLD snooping
- Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
- Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
- Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
- Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
- Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
- Support IPV6 Telnet server/ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP, TFTP, QoS, ACL
Please contact us for web manual or CLI manual
7. Application
8. Accessories
|
Industrial Optical Module
|
|
OSPL1E06D-85
|
100BASE-FX(850nm)
|
|
OSPL1E06D
|
100BASE-FX
|
|
OSPL1E20D
|
100BASE-LX
|
|
OSPL1E40D
|
100BASE-EX
|
|
OSBL1E20D-35
|
100BASE-BX-U(TX 1310 RX1550)
|
|
OSBL1E20D-53
|
100BASE-BX-D(TX 1550 RX1310)
|
|
OSPL1G05D
|
1000BASE-SX
|
|
OSPL1G06D
|
1000BASE-SX(1310nm)
|
|
OSPL1G20D
|
1000BASE-LX
|
|
OSPL1G40D
|
1000BASE-EX
|
|
OSBL1G20D-35
|
1000BASE-BX-U(TX 1310 RX1550)
|
|
OSBL1G20D-53
|
1000BASE-BX-D(TX 1550 RX1310)
|
|
Industrial DIN Power Supply
|
|
IM-DAC220/DC12V1.67A
|
AC220V to DC12V1.67A, -30℃～70℃
|
|
IM-DAC220/DC24V1A
|
AC220V to DC24V1A, -30℃～70℃
|
|
IM-DAC220/DC48V1.6A
|
AC220V to DC48V1.6A, -30℃～70℃
|
|
IM-DAC220/DC48V2.5A
|
AC220V to DC48V2.5A, -40℃～70℃
|
|
IM-DAC220/DC48V5A
|
AC220V to DC48V5A, -40℃～70℃
|
|
IM-DAC220/DC48V10A
|
AC220V to DC48V10A, -40℃～70℃
|
9. FAQ
1, What chip is it based?
Olycom: Vitesse
2, Can I customize it?
Olycom: Yes
We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)
3, Can I connect it with 10/100M devices?
Olycom: Yes
For LAN ports, they are 10/100/1000M auto-sensing
For Fiber ports, please configure 100Mbps speed via Web GUI or CLI
4, Can I shut down PoE function for some ports when necessary?
A: Yes
All the PoE managed switches in this series support PoE management
Please just set PoE status via Web GUI or CLI
5, Do you do SKD/CKD?
A: Yes
As a factory, we have dealt with this many times.
