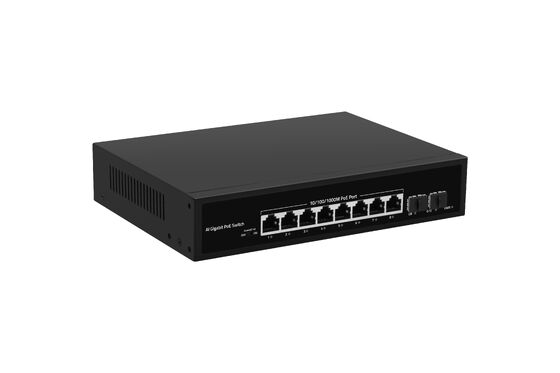

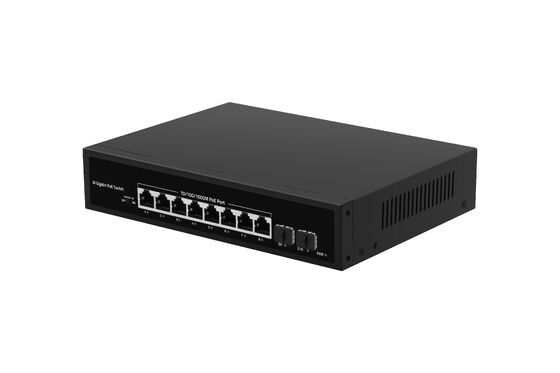

8 Port Full Gigabit Fiber Ethernet PoE Switch
Key Features of Commercial Network Switch
- Support 8*10/100/1000M PoE Ports+2* Gigabit SFP Ports
- Ethernet Ports support 10/100/1000M self-adaptive
- The AI mode is automatically enabled 10M speed for Ports 7-8 in Extend mode
- PoE priority is supported, from port 1 to port 8, which is enabled by default
- Flow control mode: IEEE 802.3X standard for full duplex, and Back Pressure standard for half duplex
- Zero configuration feature, automatically supplied to adaptive equipment
- Panel indicator monitoring status and help failure analysis
- With DIP switch, support Default and Extend modes
- Support Surge protection: Common mode 4KV; ESD: Air 8KV, Contact 6KV(level B)
Technical Data of CCTV PoE Switch
|
Product Name
|
10 Port 10/100/1000Mbps Ethernet PoE Switch
|
|
Port
|
8 Port 10/100/1000M PoE + 2 Gigabit SFP
|
|
Switching Capacity
|
20Gbps
|
|
Throughput
|
14.88Mpps
|
|
Packet Buffer
|
448Kbit
|
|
MAC Address
|
2K
|
|
Transfer Mode
|
Store and forward
|
|
MTBF
|
100000 hours
|
|
Network protocol
|
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab (1000Base-TX)
IEEE802.3x (Flow control)
IEEE 802.3z (Gigabit Ethernet Fiber Standard)
|
|
PoE Protocol
|
IEEE802.3af(15.4W)
IEEE802.3at(30W)
|
|
PoE Wiring
|
1/2(+), 3/6(-)
|
|
PoE Budget
|
120W
|
|
Industry Standard
|
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)
EN61000-4-5 (Surge)
|
|
Network Medium
|
10Base-T: Cat3,4,5 or above UTP(≤100m)
100Base-TX: Cat5 or above UTP(≤100m)
1000Base-TX: Cat5 or above UTP(≤100m)
|
|
Optical Media
|
Multi mode fiber : 50/125, 62.5/125, 100/140μm
Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm
|
|
Certification
|
CE/FCC/RoHS
|
|
Working Environment
|
Working Temperature: -10℃~50℃
Storage Temperature: -40℃~70℃
Working Humidity: 10%~90%, non-condensing
Storage Temperature: 5%~95%, non-condensing
|
|
Power
|

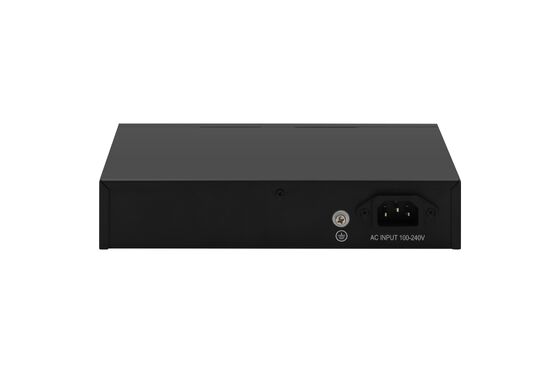

Power Input Voltage: AC100-240V
Internal AC-DC Converter: 52V2.3A
|
|
LED Indicators
|
PWR(Power indicator)
On: power on
Off: no power
1-10 Green(Link&Data)
On: Link normal
Off: Link blocked
Flashing: Data Transmitting
|
|
DIP Switch
|
Default: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled
Extend: Link Extension Mode, 7-8 ports PoE and data transmission distance extended to 250 meters, the transmission rate becomes 10M/s
|
Introduction
It adopts high-quality and high-speed network intelligent and PoE chip
This PoE switch has 8 port 10/100/1000M PoE + 2 Gigabit SFP enjoying
- seamless connection for 10/100/1000M Ethernet
- one-key smart simple switching working mode
- easy to manage and maintain
- 802.3af and 802.3at standard for each PoE port
- intelligent detection of powered devices
power the devices that comply with the IEEE802.3af or IEEE802.3at standards
transmit only data to non-PoE devices
With simple and convenient installation, maintenance methods and rich business features, it helps users build a safe and reliable high-performance network
It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband
It can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools
Dimension
Packing Information
1pc switch(neutral device)
1pc power cable(standards vary across countries)
1pc user manual(including QIG information)
1pair mounting brackets(rack mountable)
Shipping box information(Below information is approximately accurate)
Product size: 220*161*44mm
Inner box size: 315*215*85mm
Product weight: 0.88Kg
Packing weight: 1.22Kg
Master box size: 445*445*335mm
Packing quantity: 10Pcs
Packing weight: 13.2Kg
Remark
Accessories(optical module, patchcord etc.)are NOT included in the packing box
Please prepare it by yourself or purchase a whole set from us
Power adapter is included in BOTH the packing box AND unit pricing
